Oh Shit,what have i done!!

[2002r1jon]

You know when you start something,then you take it a little further,then a little bit more,then a bit more and so on,well


Im really not sure im comfortable with where this is going tbh,im no mechanic

[Mick]

Lol what's the plan with these then Jon?
Is it just a clean up ??
The hardest part is getting the throttle cables back on when you refit them

Sent from my HTC One using Tapatalk

[2002r1jon]

Not really sure tbh Mick,fancy popping up n sorting it for me?

[stug]

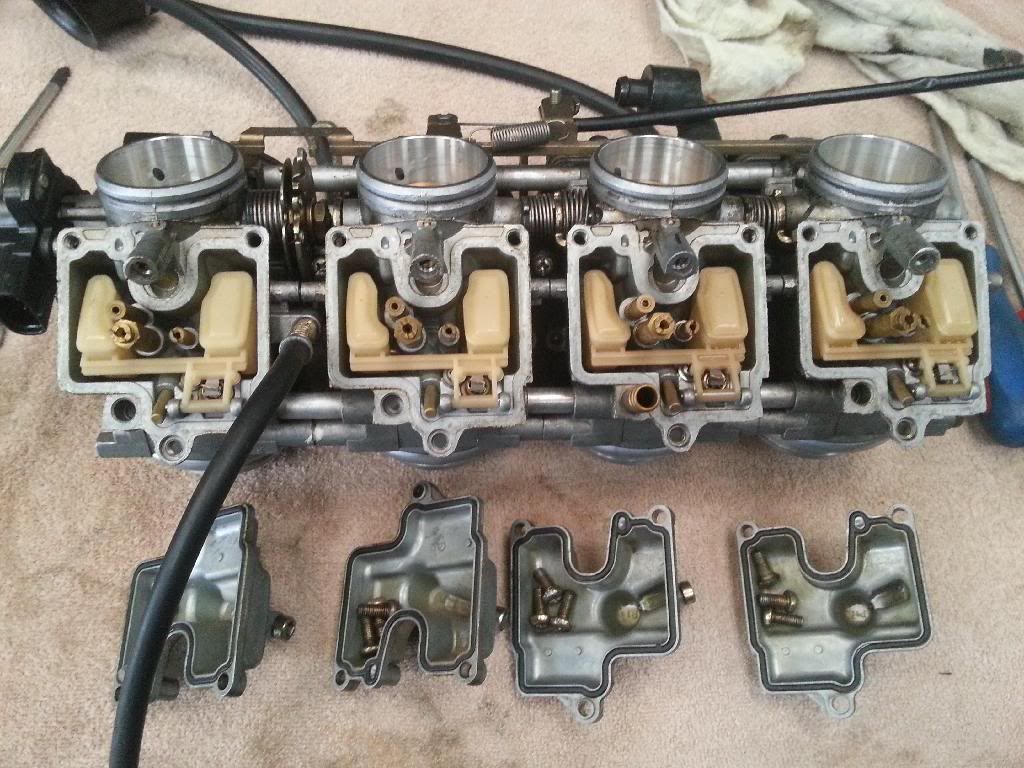

Jon just take a few pics as you go along and keep everything from each carb together in the float bowls when you remove it.
If you are methodical and keep everything clean and tidy its not difficult to fully strip them.
Just dont separate each individual carb from the bank as it can be a pain putting them back together.
Remember there is the opposite end as well with the diaphrams and slides, this is more difficult than the float bowl side.
Plenty of carb cleaner and your good, keep WD away from the rubber seals as it can make them swell up and go out of shape.

[Mick]

Good advice there from stug....

Also when you do the other end, put a smear of grease on the rubber to hold it in place when replacing the cover

[2002r1jon]

well after rebuilding them,they still work
https://www.youtube.com/watch?v=HYXaTSHBZ8w

[Mick]

well done jon boy

[Gael Force R1]

Carbs , don't ya just love em, buy an ultrasonic cleaner, not that expensive either and worth every penny, specially for 2 stroke carbs

[2002r1jon]

TBH i found it quite theraputic working on them carbs

[carsonr6]

Carbs , don't ya just love em, buy an ultrasonic cleaner, not that expensive either and worth every penny, specially for 2 stroke carbs

Which ultrasonic cleaner do you use?
